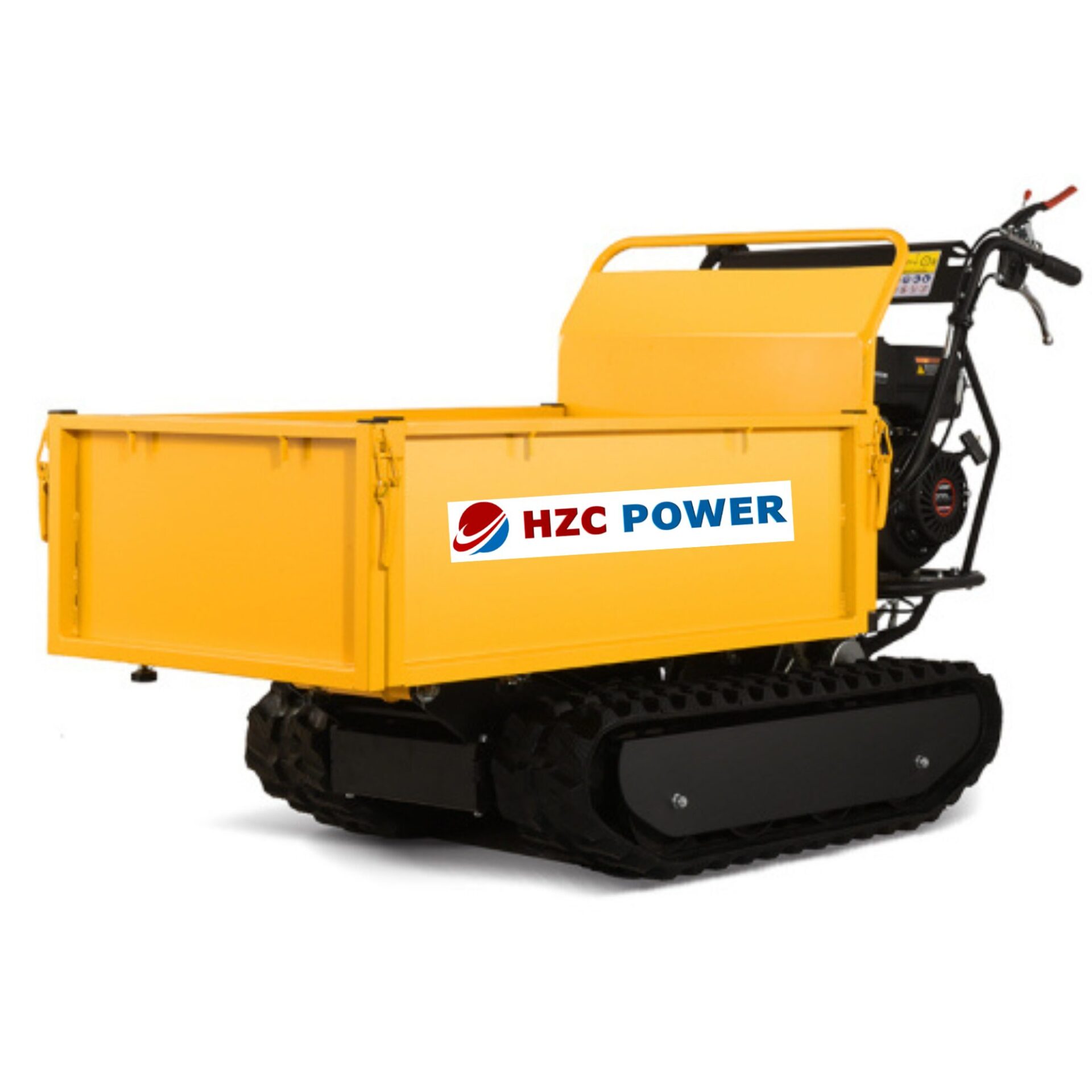

Minidumper, track dumper with flat body, chain drive, 9 hp gasoline engine and hydraulic tipping device (MDK501H)
With the MDK501H with flat body from HZC Power, you get a high-quality minidumper with crawler chassis. The width of 740 mm ensures a firm footing and mobility, allowing you to get into areas that are difficult to access or through narrow alleyways and rough terrain and inclines. The flat body can be opened on all sides, giving you more flexibility during transportation. With the additional 90° hydraulic tipping function, unloading is both effortless and very convenient. The maximum payload is 500 kg, making it very easy to transport very heavy loads such as sand, soil, gravel, stones, building rubble, garden waste, tools or other materials. In addition, an incline of max. 20° can be mastered fully loaded without any problems.
Minidumper drive with chains and gasoline engine
The practical minidumper is powered by a powerful Ducar petrol engine (9 hp). A maintenance/repair service is available worldwide from qualified partner workshops. In addition, the chain drive means that particularly rough terrain or inclines can be tackled with ease. The minidumper has 3 forward gears (up to max. 5 km/h) and one reverse gear (max. 2.5 km/h). The mini-dumper masters inclines of up to 20° without any problems.
Equipping the minidumper with chains
Up to 500 kg of sand, soil, gravel, stones, building rubble, garden waste or other materials fit into the spacious skip of the mini track dumper. The tare weight is 278 kg. The flat skip can also be used to place and transport longer tree trunks and tools by opening the sides. Thanks to the motorization, however, this weight is easy for you to transport – without any effort on your part. The skip measures 95x68x46.5 cm (LxWxH) and therefore offers sufficient space for many materials and tools. The skip can be tilted hydraulically to an angle of 90°, making it easy to unload.
Offer for your HZC Power product
At HZC Power we always pay attention to the highest quality, technically flawless workmanship and a robust construction. You receive our products partially assembled by a shipping company. We offer you a fixed price for shipping which is automatically generated in the shopping cart (additional shipping information can be found here).
You are welcome to view our products at our headquarters after arrangement or pick them up free of charge.
If you have any further questions about the individual models, please feel free to contact our customer service. He will be happy to advise you further. Convince yourself of our offer and secure your product in the best quality at the best price at HZC Power.
Technical data
- Manufacturer: HZC Power
- Model: Minidumper with flat body & track drive (MDK500H)
- Engine: Ducar gasoline engine, 9 hp, 270cc
- Fuel: Gasoline (regular gasoline, Super E5 or E10)
- Starter: Pull starter
- Chassis drive: Chains
- Tank capacity:
- Gears and speed: 3 forward gears (max. 5km/h) & 1 reverse gear (2.5km/h)
- Payload: max. 500 kg
- Flat body drive: Hydraulic
- Loading trough dimensions: 95x68x46.5 cm (LxWxH)
- Climbing ability: max. 20°
- Tilt angle: 90
- Braking system:
- Front ground clearance:
- Rear ground clearance:
- Height of front edge of loading trough:
- Total weight: 284 kg
- Weight with packaging: Approx. 314 kg
- Product dimensions:
- Packaging dimensions: 167x77x113 cm (LxWxH)
- Shipping: by forwarding agent
Shipping Details / Delivery Note
The minidumper is delivered well packed and partially assembled in a robust steel frame or wooden crate. You need to allow approx. 1 hour for final assembly, which is easy to carry out. We will be happy to help you with this, please do not hesitate to contact us. Please note: When using the electric dumpers for the first time, the battery must be fully charged and the fuel and engine oil must be topped up for the fuel dumpers!
