Technical data
- Manufacturer: HZC Power GmbH
- Model: BZR520K
- Engine: Briggs&Stratton (10 hp, petrol, XR1450, 306 cc)
- Fuel tank capacity: 6.5 liters
- Cooling: Hydraulic oil cooler
- Electric starter: 12 volts
- Maximum climbing ability: 25°
- Oil tank capacity: 19 liters (HLP46)
- Hydraulic pump: gear pump
- Working pressure: 160 bar
- Maximum pressure: 210 bar
- Hydraulic flow: 30 liters per minute
- Digging depth: 1358 mm
- Overloading height: 2140 mm
- Reach on the ground: 1,750 mm
- Spoon breakout force: 1300 kg
- Tearing force handle: 560 kg
- Dimensions: 2300 x 940-1300 x 2140 mm (LxWxH)
- Product/Shipping Weight: 520 kg
- Track width: 940-1300 mm
- Max. Train speed: 15 km/h
Scope of delivery
Dimensions of the mini excavator
Due to its compact size, the BZR520 is very flexible and can pass through narrow alleys and find space on smaller construction sites. The dimensions of the excavator are 2300 x 940-1300 x 2140 mm (LxWxH). A width adjustment (track width: 940-1300 mm) of the extendable wheels and additional supports ensure that the mini-excavator stands firm.
This mini walking excavator is excellently suited for digging trenches and removing turf in places that are difficult to access.
Walking excavator with petrol engine
The powerful all-rounder is powered by a Briggs & Stratton petrol engine (10 hp, petrol, XR1450, 306 cc), so there is enough digging and lifting power for your project. The engine also has a hydraulic oil cooler.
If there are any problems with the engine despite the high-quality engine, Briggs & Stratton offers a repair service. These are located in many locations worldwide at qualified partner workshops.
The walking excavator has a digging depth of 1358 mm. Furthermore, the range on the ground is 1750 mm. It also has a loading height of 2140 mm. Overall, this makes the walking excavator your perfect companion on your difficult-to-access construction site.
Equipment of the 2-wheel excavator
A quick coupler is installed as standard on the BZR520K, so that a change can be carried out within a minute. This makes working with the small excavator even more efficient and economical.
Hydraulic attachments can still be connected to an additional control unit on the excavator arm. Hydraulic accessories, however, must be attached without the quick coupler. You can find detailed instructions on our YouTube channel. Alternatively, please request the PDF version our customer service to.

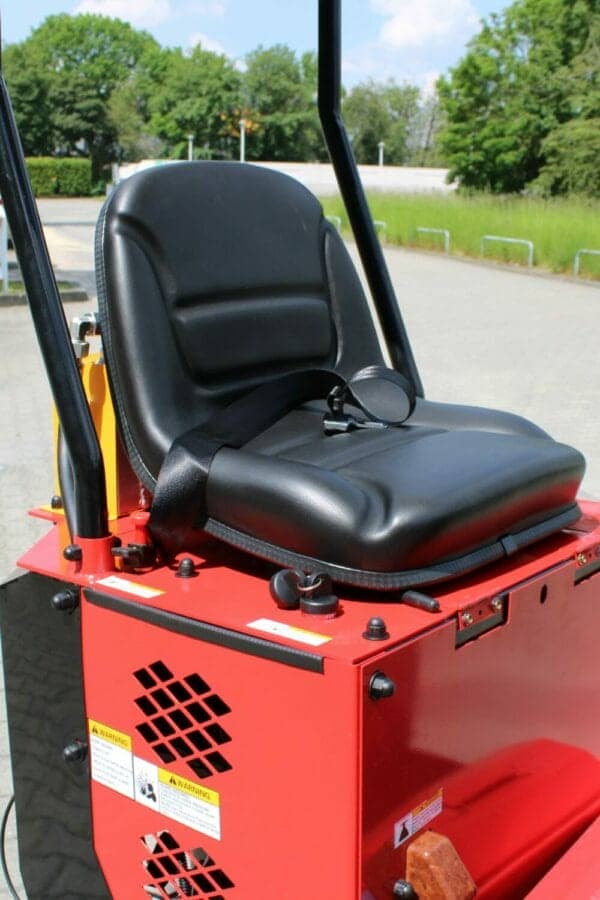

The seat can be rotated 360° and provides additional flexibility when excavating. The additionally adjustable seating position and easily accessible control levers further make using the mini excavator easier. A hydraulically lowerable dozer blade completes the offering for the mini excavator.
Offer for your mini excavator
At HZC Power we always pay attention to the highest quality, technically flawless workmanship and a robust construction. Our mini excavators are delivered to you fully assembled by a shipping company. We offer you a fixed price for shipping, which is automatically generated in the shopping cart (additional shipping information can be found ).
You are welcome to view our products at our headquarters after arrangement or pick them up free of charge.
If you have any further questions about the individual models, please feel free to contact our customer service. He will be happy to advise you further. Convince yourself of our offer and secure your mini excavator in the best quality at the best price at HZC Power.
Walking excavator / 2-wheel mini excavator with petrol engine (BZR520K)
The BZR520K is a walking excavator from HZC Power. The mini excavator has 2 wheels – instead of a classic tracked chassis – and is therefore particularly practical in difficult conditions.
This means that the walking excavator can be used particularly flexibly on muddy and muddy ground. Furthermore, the powerful mini excavator is equipped with a reliable Briggs & Stratton petrol engine powered, ensuring sufficient power.
Videos about the walking excavator (BZR520K)
Exclusive accessories for our mini excavators
In addition to our standard shovel set, we also have a number of other accessories for our mini excavators in our range. Of course, you can also buy the shovel set or individual shovels from us.
In addition, we also have a trench shovel with a width of 610 mm and a trench shovel with a width of 810 mm in our range and a practical rake (RE5).
Our mini excavators also have an additional control unit integrated into the excavator arm. Hydraulic devices can be connected via this control unit. We currently have two earth drills (HEB200 and HEB300) as well as a practical caulking hammer (HSH5000).
In addition to attachments, we also stock a charger for the mini excavator batteries. The smart charger (SLM10) is not only suitable for all of our excavators, but also for cars, boats and much more.
Shipping details / delivery note
Our excavators are delivered fully assembled and ready for operation. You will
delivered using a small truck including a lifting platform so that no own aids such as ramps are required. Hydraulic oil and engine oil have already been filled in, and the excavator is also refueled directly. Before using it for the first time, please check the excavator completely and tighten all existing screws again.
