mini excavator with wheels

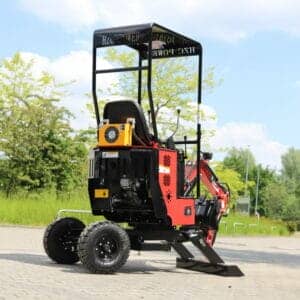

The BVR600K is a 4-wheel excavator from HZC Power. The mini excavator has 4 wheels instead of a classic tracked chassis, making it particularly gentle on the ground.
The undercarriage is width-adjustable so that the mini excavator with wheels can be used flexibly. Furthermore, the powerful mini excavator is powered by a reliable Briggs & Stratton petrol engine to ensure sufficient power.
Dimensions of the mini-excavator
.

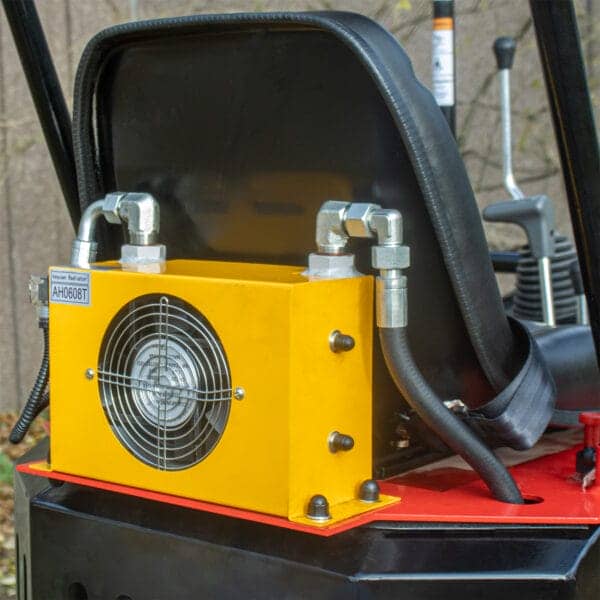

The powerful all-rounder is powered by a Briggs&Stratton gasoline engine (10 hp, gasoline, XR1450, 306 cc), so there is enough digging and lifting power for your projects. Furthermore, the engine features a hydraulic oil cooler. In addition, Briggs&Stratton offers a worldwide maintenance/repair service for the powerful engine at qualified partner workshops.
The size of 2300 x 1100 x 2140 mm (LxWxH) makes the BVR600K wheeled mini excavator very compact and maneuverable, so it can fit on any small construction site. Furthermore, the small excavator is very flexible with its track width of 1100 mm and its four wheels. He can therefore easily pass narrow streets and paths.

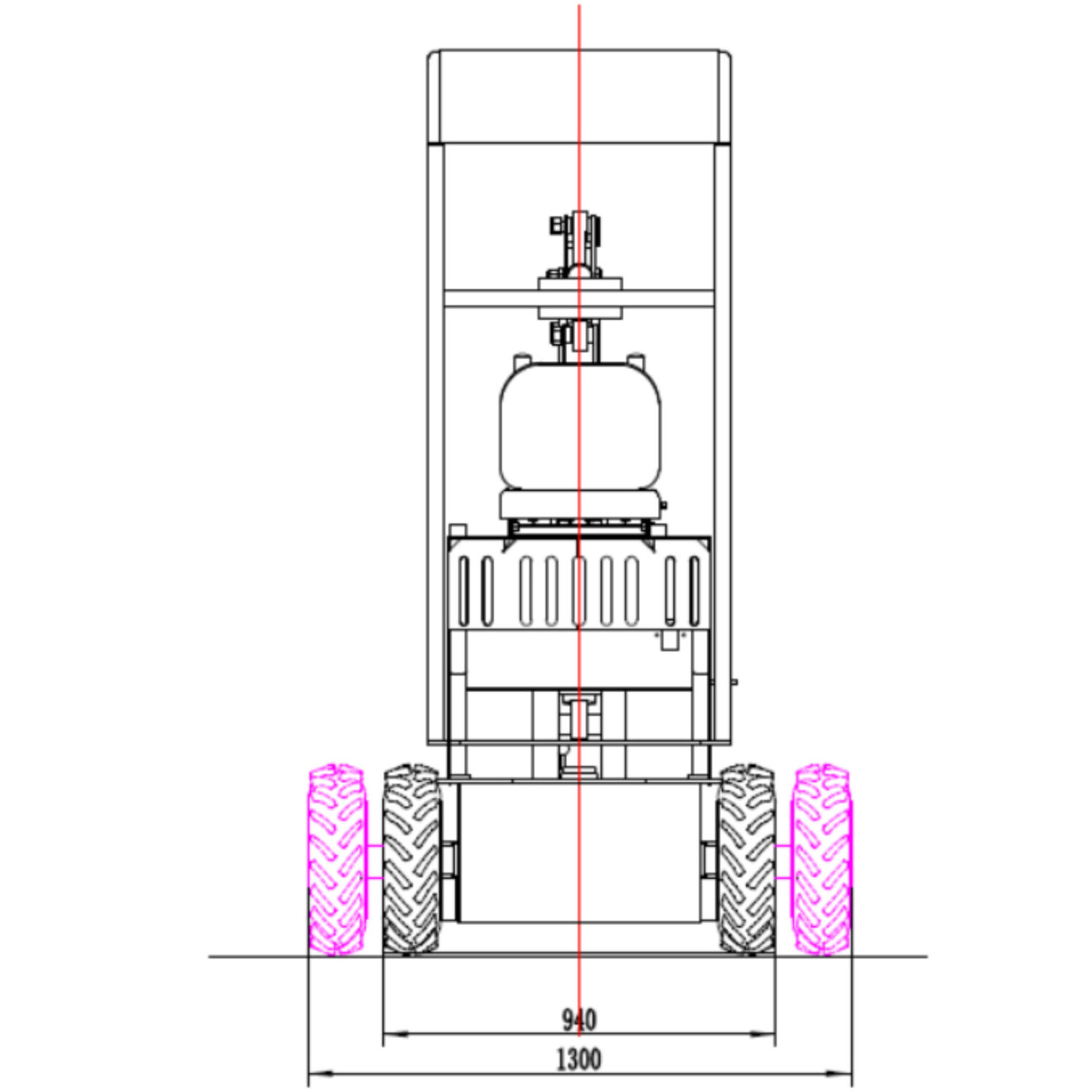

The width adjustment of the wheels and additional supports ensure that the mini excavator stands firmly at its destination. The low ground pressure (max. 0.35 kgf/cm²) and the versatility enable soil-friendly work. This can have many advantages, especially in the garden.
Mini-excavator with wheels
The powerful all-rounder is powered by a Briggs&Stratton petrol engine (10 hp, petrol, XR1450, 306 cc), so that there is enough digging and lifting power for your project. The engine has a hydraulic oil cooler. For this powerful engine, Briggs&Stratton offers a maintenance/repair service at qualified partner workshops worldwide.
With a digging depth of 1280 mm, a reach at ground level of 2200 mm and a loading height of 2140 mm, this excavator is the perfect companion on your construction site.
A digging depth of 1280 mm, a reach on the ground of 2200 mm and a transfer height of 2140 mm make this excavator with wheels your perfect companion on your construction site. Especially in an already established garden, the excavator with wheels is suitable, as they are particularly gentle to the ground. In contrast to chains, they also cause much less damage to the ground. Nevertheless, the digging depth, reach and overload height are sufficient for all common projects in gardening.
Features of the 4-wheel excavator
A quick coupler is also fitted as standard on the BVR600K, so that a change can be carried out within one minute. This makes working with the small excavator even more efficient and economical. Below you will also find our video, in which we demonstrate the quick coupler function as an example.
An einem zusätzlichen Steuergerät am Baggerarm können des Weiteren hydraulische Aufsätze angeschlossen werden. Hydraulisches Zubehör muss im Gegensatz zu dem Standardschaufel-Set ohne den Schnellwechsler angebracht werden. Hierzu finden Sie ausführliche Anleitungen auf unserem YouTube Kanal oder fordern Sie gerne die PDF-Variante bei unserem Kundenservice an. Als hydraulische Aufsätze führen wir sowohl Erdbohrer als auch einen starken Stemmhammer. Dieser eignet sich zum Beispiel besonders zum Aufstemmen von Bodenplatten.
Further information
The seat of the wheeled excavator can be rotated 360° and therefore provides additional flexibility when excavating. The additionally adjustable seat position and easily accessible operating levers make using the mini excavator even easier. Likewise, the mini wheeled excavator has an hour meter, a seat belt and a small lighting as well as a foot mat. A hydraulically lowerable dozer blade rounds off the range of features for the mini wheeled excavator.
The mini excavator with wheels is also easy to use thanks to its simple but efficient design, so that a large introduction is not necessary and with a little practice you can start excavating quickly. When you purchase it, you will still receive brief instructions on how to start the excavator, so that there are no problems with delivery and the first use. We would be happy to deliver your mini excavator with wheels to you via a freight forwarder – all at a fixed price.
Offer for your mini excavator
At HZC Power we always pay attention to the highest quality, technically flawless workmanship and a robust construction. Our mini excavators are delivered to you fully assembled by a shipping company. We offer you a fixed price for shipping, which is automatically generated in the shopping cart (additional shipping information can be found ).
You are welcome to view our products at our headquarters after arrangement or pick them up free of charge.
If you have any further questions about the individual models, please feel free to contact our customer service. He will be happy to advise you further. Convince yourself of our offer and secure your mini excavator in the best quality at the best price at HZC Power.
Scope of delivery of the excavator

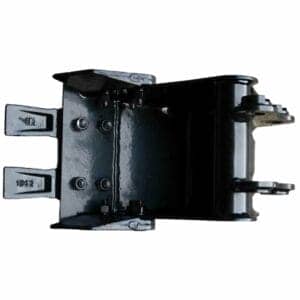

As standard, the mini excavator comes with a mounted 375 mm excavator bucket delivered. In addition, you will also receive a 200 mm shovel for this excavator, a 610 mm trench shovel and a Subsoil rake. The quick coupler on the mini excavator makes it easier to change the different blades.
As a supplement, we also supply our popular Gripper for excavators (SH360) so that you can also easily grab and lift things. Additional hydraulic accessories such as stemmhammer can be connected to an additional integrated control unit or earth drill can be connected.
Technical data:
- Manufacturer: HZC Power GmbH
- Model: BVR600K
- Engine: Briggs&Stratton, 10 HP/7.4 KW, petrol, XR1450, 306cc
- Fuel tank capacity: 6.5 liters
- Cooling: Hydraulic oil cooler
- Electric starter: 12 volts
- Maximum climbing ability: 25°
- Maximum speed: 1.4 km/h
- Ground pressure: 0.35kgf/cm²
- Track width: 1100 mm
- Oil tank capacity: 19 liters (HLP46)
- Swivel radius: 360°
- Steering angle: 30° right & left
- Hydraulic pump: gear pump
- Working pressure: 160 bar
- Maximum pressure: 210 bar
- Hydraulic flow: 30 liters per minute
- Gripping depth: 1280mm
- Overhead height: 2140 mm
- Reach on the ground: 2200 mm
- Weight: 2300 x 1100 x 2140 mm (LxWxH)
- Product/Version: 600 kg
Videos of the mini excavator (DKB880)
Exclusive accessories for our mini excavators
In addition to our standard shovel set, we also have a number of other accessories for our mini excavators in our range. Of course, you can also buy the shovel set or individual shovels from us.
In addition, we also have a trench shovel with a width of 610 mm and a trench shovel with a width of 810 mm in our range and a practical rake (RE5).
Our mini excavators also have an additional control unit integrated into the excavator arm. Hydraulic devices can be connected via this control unit. We currently have two earth drills (HEB200 and HEB300) as well as a practical caulking hammer (HSH5000).

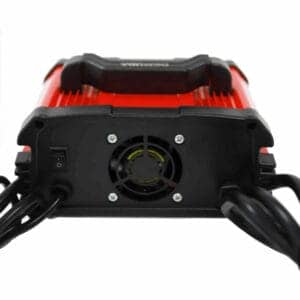

In addition to attachments, we also stock a charger for the mini excavator batteries. The smart charger (SLM10) is not only suitable for all of our excavators, but also for cars, boats and much more.
Shipping details / delivery note
Our excavators are delivered fully assembled and ready for operation. You will
delivered using a small truck including a lifting platform so that no own aids such as ramps are required. Hydraulic oil and engine oil have already been filled in, and the excavator is also refueled directly. Before using it for the first time, please check the excavator completely and tighten all existing screws again.
