Mini excavator with chain drive, petrol engine and adjustable chassis (BKB850K)
With the BKB850K from HZC Power you always have the perfect all-rounder at your side. How come? The classic mini excavator has a tracked chassis, and the two chains can be controlled individually. This makes the small excavator even more maneuverable and flexible to use. Find out now and buy directly online.
Furthermore, the powerful tracked excavator is powered by a reliable Briggs & Stratton petrol engine, ensuring sufficient performance.
Dimensions of the mini excavator
Our BKB850K excavator weighs approx. 920 kg, making it a classic mini excavator. Its compact size makes it very flexible and can also pass through narrow streets and passages. The BKB850K therefore also finds its place on smaller construction sites.
The dimensions of the excavator are 2550 x 900-1100 x 2160 mm (LxWxH). The crawler chassis measures 1090 x 180 x 320mm (LxWxH). With these dimensions, the BKB850K can also reach places that are difficult to access, such as houses or small backyards. A hydraulically adjustable width adjustment of the tracked chassis ensures a firm stand.
Buy a mini excavator with a petrol engine
Angetrieben wird der leistungsstarke Allrounder mit einem verlässlichen Briggs & Stratton Benzinmotor (14 PS, Benzin, XR2100 420cc), sodass genügend Grab- und Hubleistung für Ihr Projekt vorhanden ist. Der Motor weist einen Hydrauliköl-Kühler auf. Für den leistungsstarken Motor bietet Briggs&Stratton weltweit einen Wartungs-/Reparaturservice bei qualifizierten Partnerwerkstätten an.
Beim Betrieb des Baggers sind die Ketten einzeln steuerbar, sodass der Kettenbagger optimal bewegt werden kann. Eine Grabtiefe von 1650 mm, einer Reichweite am Boden von 2400 mm und einer Überladehöhe von 2150 mm machen diesen Bagger zu Ihrem perfekten Begleiter auf Ihrer Baustelle. Dabei weist der starke Baggerarm eine Hebekraft von bis zu 150 kg auf.
Equipment of the crawler excavator
The BKB850K is equipped with a quick coupler on the excavator arm as standard. With this changer, accessories can be replaced within a minute. The changer supports changing between the blades. This makes working with the all-rounder even more efficient and economical.
Hydraulic attachments can still be connected to an additional control unit on the excavator arm. Hydraulic accessories, however, must be attached without the quick coupler. You can find detailed instructions on our YouTube channel or request the PDF version from our customer service.
The seat can be rotated 360° and provides additional flexibility when excavating. The additionally adjustable seating position and easily accessible control levers further make using the mini excavator easier. A hydraulically lowerable dozer blade completes the offering for the mini excavator.
Scope of delivery of the excavator

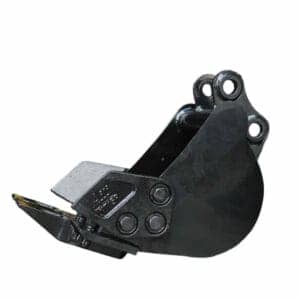

As standard, the mini excavator comes with a mounted 375 mm excavator bucket delivered. In addition, you will also receive a 200 mm shovel for this excavator, a 610 mm trench shovel and a Subsoil rake. The quick coupler on the mini excavator makes it easier to change the different blades.
As a supplement, we also supply our popular Gripper for excavators (SH360) so that you can also easily grab and lift things. Additional hydraulic accessories such as stemmhammer can be connected to an additional integrated control unit or earth drill can be connected.
Technical data
- Manufacturer: HZC Power GmbH
- Model: BKB850K
- Engine: Briggs&Stratton, 14HP/10.3 KW, petrol, XR2100 420cc
- Cooling: Hydraulic oil cooler
- Max. Torque: 35 Nm
- Max. Speed: 2880 r/min
- Digging force: 5.5 kN –> Lifting force: Up to 150 kg
- Fuel tank capacity: 6.5 liters
- Electric starter: 12 volts
- Maximum climbing ability: 25°
- Maximum speed: 2 km/h
- Ground pressure: 0.35 kgf/cm²
- Dimensions of tracked chassis: 1090 x 180 x 320 mm (LxWxH)
- Oil tank capacity: 19 liters (HLP46)
- Swivel radius: 360°
- Swivel speed: 13 r/min
- Hydraulic pump: gear pump
- Working pressure: 160 bar
- Maximum pressure: 210 bar
- Hydraulic flow: 30 liters per minute
- Digging depth: 1650 mm
- Overloading height: 2150 mm
- Reach on the ground: 2,400 mm
- Dimensions: 2550 x 900-1100 x 2160 mm (LxWxH)
- Product/Shipping Weight: 920 kg
Video about the mini excavator (BKB850K)
Exclusive accessories for our mini excavators

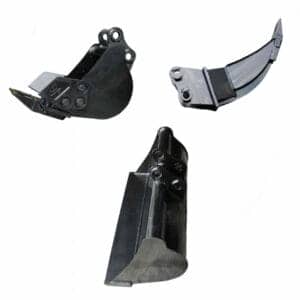

In addition to our standard shovel set, we also have a number of other accessories for our mini excavators in our range. Of course, you can also buy the shovel set or individual shovels from us.
In addition, we also have a trench shovel with a width of 610 mm and a trench shovel with a width of 810 mm in our range and a practical rake (RE5).
Our mini excavators also have an additional control unit integrated into the excavator arm. Hydraulic devices can be connected via this control unit. We currently have two earth drills (HEB200 and HEB300) as well as a practical caulking hammer (HSH5000).
In addition to attachments, we also stock a charger for the mini excavator batteries. The smart charger (SLM10) is not only suitable for all of our excavators, but also for cars, boats and much more.
Shipping details / delivery note
Our excavators are delivered fully assembled and ready for operation. You will
delivered using a small truck including a lifting platform so that no own aids such as ramps are required. Hydraulic oil and engine oil have already been filled in, and the excavator is also refueled directly. Before using it for the first time, please check the excavator completely and tighten all existing screws again.
