Mini excavator with chain drive, diesel engine, adjustable chassis & Swivel excavator arm (DKB881)
Our HZC Power mini excavator DKB881 with diesel engine is a great support on every construction site. With the 12 hp engine, the small excavator becomes a reliable all-rounder.
The DKB881 has a classic tracked chassis. The two chains can each be controlled individually and make the excavator even more flexible. In addition to the DKB880, the DKB881 has a swiveling excavator arm.
Dimensions of the mini excavator
The DKB881 from HZC Power provides you with optimal support on your construction site. Due to its compact size, the DKB881 is very flexible and can also pass through narrow streets and fit on smaller construction sites.
The dimensions of the excavator are 2550 x 900-1100 x 2330 mm (LxWxH). The tracked chassis measures 1090 x 180 x 320 mm (LxWxH) and can therefore go to almost any place.
Nevertheless, the DKB881, given its size, confidently carries out the tasks of removing, demolishing, transporting or lifting as well as other tasks. A hydraulically adjustable width adjustment of the tracked chassis ensures a firm stand.
Mini excavator with diesel engine
The powerful all-rounder is powered by a Koop diesel engine (12 hp), so there is enough digging and lifting power for your project.
With a digging depth of 1650mm, a ground reach of 2400mm and a loading height of 2150mm, this excavator is your perfect all-rounder. The working pressure is 160 bar.
As a special highlight, the DKB881 has a swiveling excavator arm (articulation – 120°), so that an even larger area can be covered when excavating without having to move the mini excavator. Thanks to the articulation system, the excavator arm can be swiveled 60° to the left and right, thereby expanding the working radius.
Equipment of the crawler excavator
The DKB881 is equipped with a quick coupler on the excavator arm as standard. With this changer, accessories can be replaced within a minute. The changer supports changing between the different buckets. This makes working with the all-rounder even more efficient and economical.
Hydraulic attachments can still be connected to an additional control unit on the excavator arm. Hydraulic accessories, however, must be attached without the quick coupler. You can find detailed instructions on our YouTube channel or request the PDF version from our customer service.
The seat can be rotated 360° and provides additional flexibility when excavating. The additionally adjustable seating position and easily accessible control levers further make using the mini excavator easier. A hydraulically lowerable dozer blade completes the offering for the mini excavator.
Offer for your mini excavator
At HZC Power we always pay attention to the highest quality, technically flawless workmanship and a robust construction. Our mini excavators are delivered to you fully assembled by a shipping company. We offer you a fixed price for shipping, which is automatically generated in the shopping cart (additional shipping information can be found ).
You are welcome to view our products at our headquarters after arrangement or pick them up free of charge.
If you have any further questions about the individual models, please feel free to contact our customer service. He will be happy to advise you further. Convince yourself of our offer and secure your mini excavator in the best quality at the best price at HZC Power.
Scope of delivery of the excavator

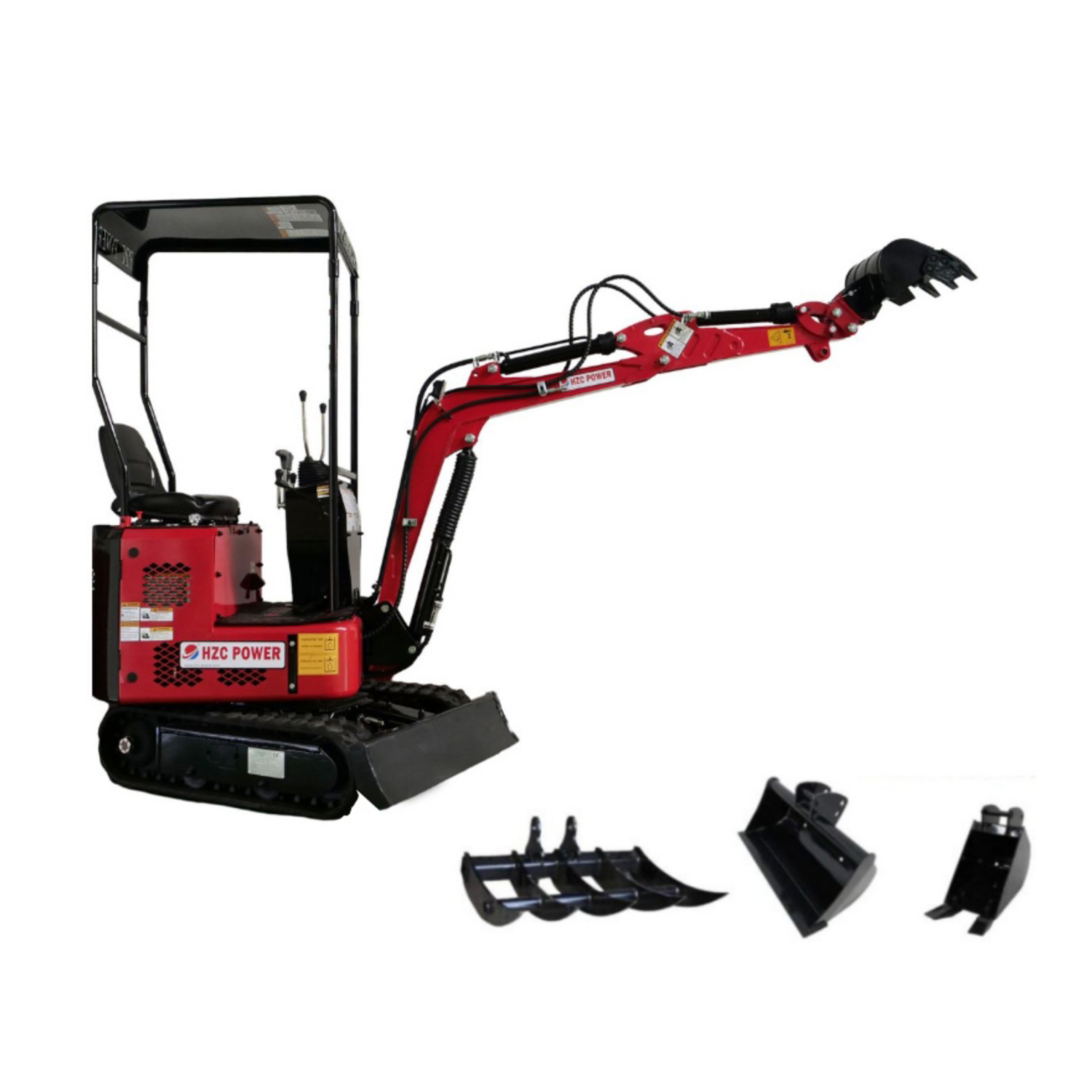

As standard, the mini excavator comes with a mounted 375 mm excavator bucket delivered. In addition, you will also receive a 200 mm shovel for this excavator, a 610 mm trench shovel and a Subsoil rake. The quick coupler on the mini excavator makes it easier to change the different blades.
As a supplement, we also supply our popular Gripper for excavators (SH360) so that you can also easily grab and lift things. Additional hydraulic accessories such as stemmhammer can be connected to an additional integrated control unit or earth drill can be connected.
Technical data:
- Manufacturer: HZC Power GmbH
- Model: DKB881
- Engine: Koop diesel engine with 12 HP/8.8 KW
- Cooling: Hydraulic oil cooler
- Max. Torque: 25 Nm
- Max. Speed: 3600 r/min
- Digging force: 5.5 kN
- Fuel tank capacity: 5.5 liters
- Electric starter: 12 volts
- Maximum climbing ability: 25°
- Maximum speed: 2 km/h
- Ground pressure: 0.35 kgf/cm²
- Dimensions of tracked chassis: 1090 x 180 x 320 mm (LxWxH)
- Oil tank capacity: 17 liters (HLP46)
- Swivel radius: 360°
- Swivel speed: 13 r/min
- Hydraulic pump: gear pump
- Working pressure: 160 bar
- Maximum pressure: 210 bar
- Tearing force on the shovel: approx. 650 kg
- Hydraulic flow: 30 liters per minute
- Digging depth: 1,650 mm
- Overloading height: 2150 mm
- Reach on the ground: 2,400 mm
- Dimensions: 2550 x 900-1100 x 2610 mm (LxWxH)
- Product/Shipping Weight: 920 kg
- Special features: articulation (120°), hydraulically adjustable chassis
VIDEOS FOR THE MINI EXCAVATOR
Exclusive accessories for our mini excavators
In addition to our standard shovel set, we also have a number of other accessories for our mini excavators in our range. Of course, you can also buy the shovel set or individual shovels from us.
In addition, we also have a trench shovel with a width of 610 mm and a trench shovel with a width of 810 mm in our range and a practical rake (RE5).
Our mini excavators also have an additional control unit integrated into the excavator arm. Hydraulic devices can be connected via this control unit. We currently have two earth drills (HEB200 and HEB300) as well as a practical caulking hammer (HSH5000).
In addition to attachments, we also stock a charger for the mini excavator batteries. The smart charger (SLM10) is not only suitable for all of our excavators, but also for cars, boats and much more.
Shipping details / delivery note
Our excavators are delivered fully assembled and ready for operation. You will
delivered using a small truck including a lifting platform so that no own aids such as ramps are required. Hydraulic oil and engine oil have already been filled in, and the excavator is also refueled directly. Before using it for the first time, please check the excavator completely and tighten all existing screws again.
