Compact Loader KLD200, Diesel Engine 10 HP, Stand-On Skid Steer, Multi Loader, Tracks (KLD200)

Compact Loader KLD200, Diesel Engine 10 HP, Stand-On Skid Steer, Multi Loader, Tracks (KLD200)

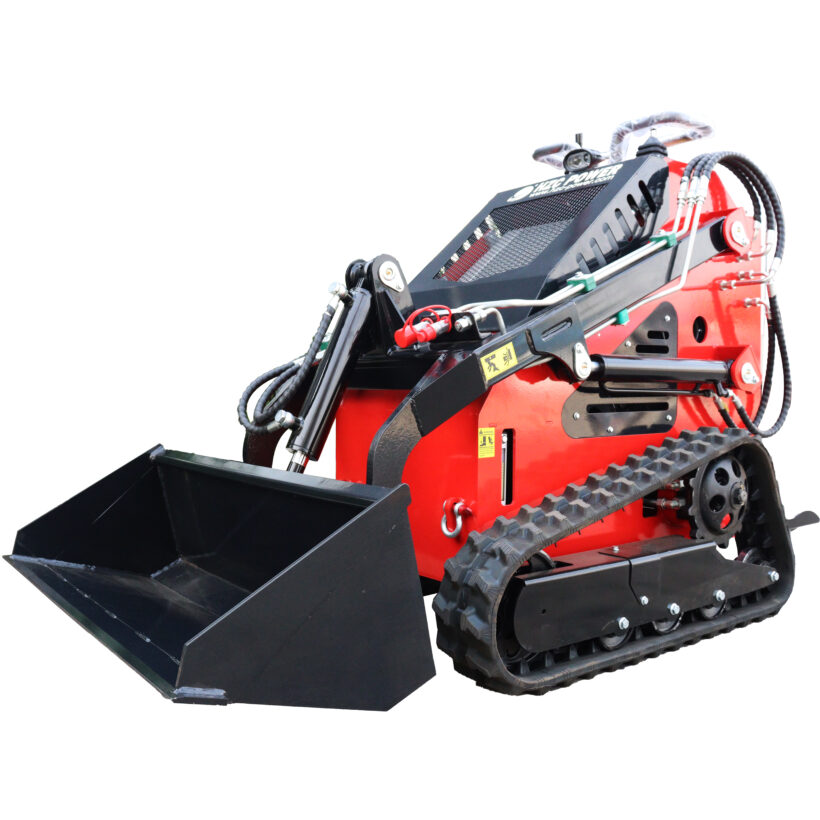

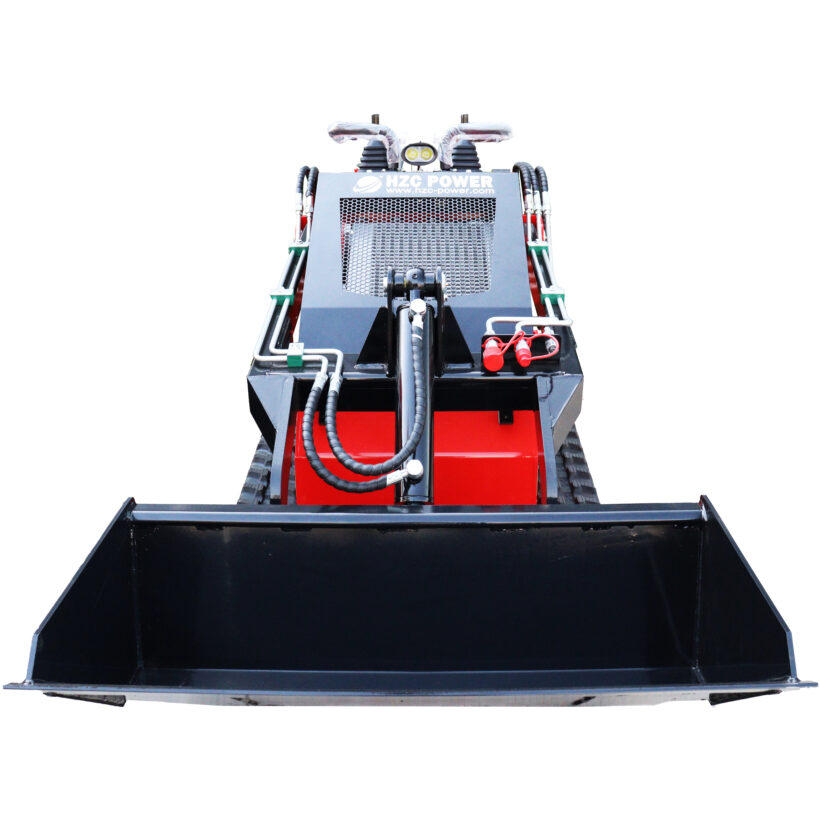

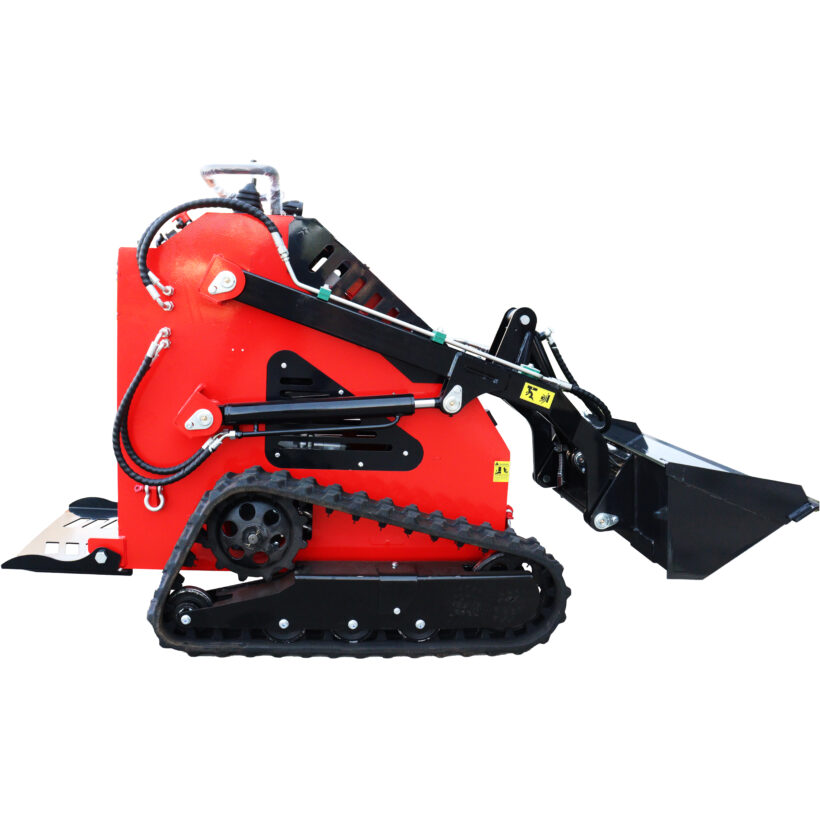

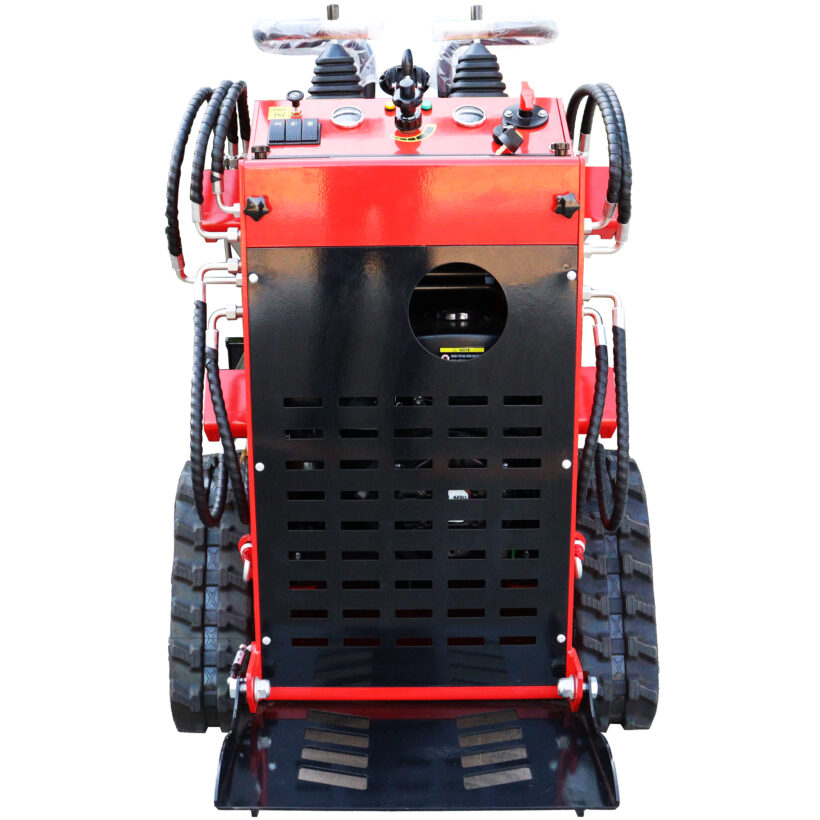

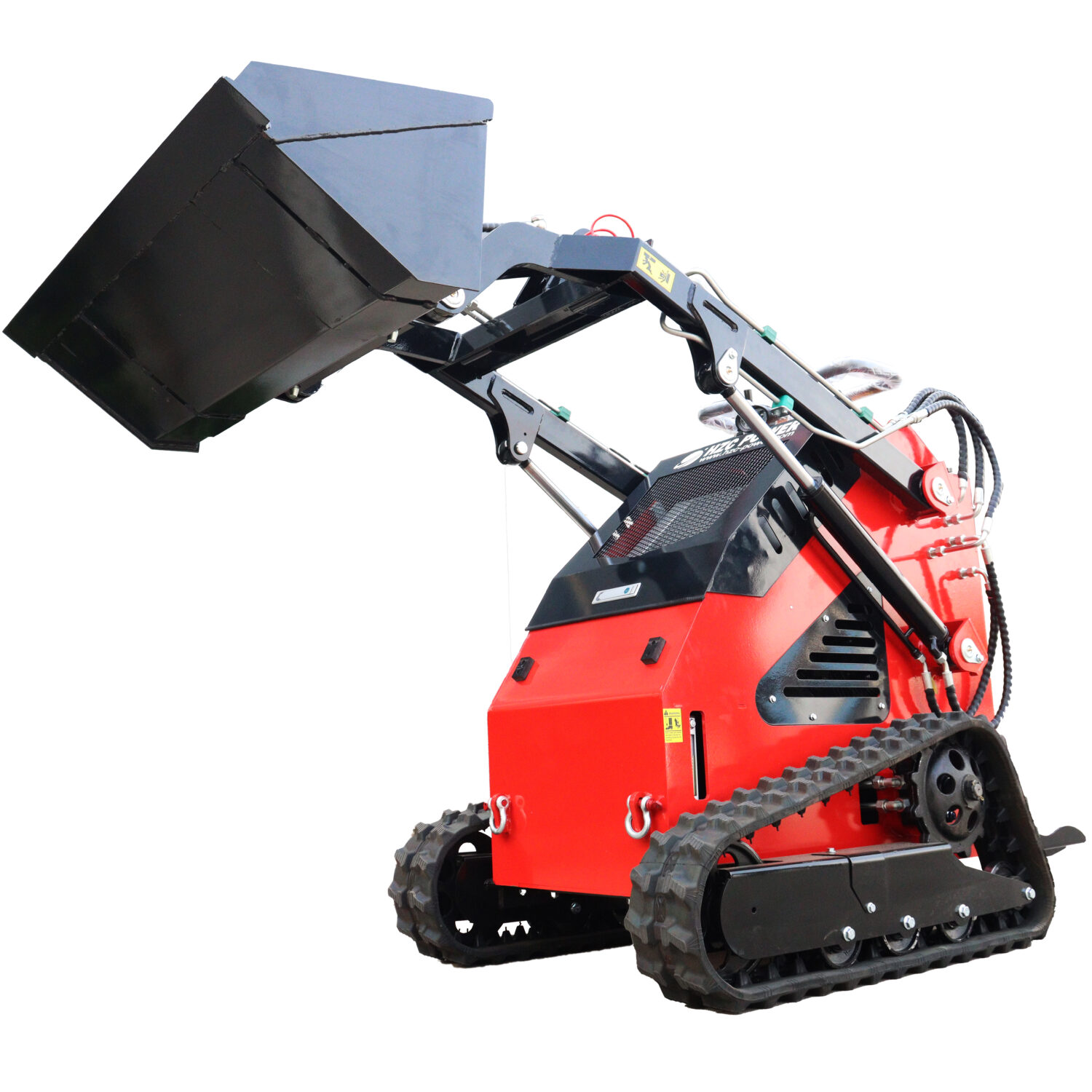

Our mini compact loader KLD200 from HZC Power is a powerful stand-on skid steer, designed for versatile applications and demanding tasks.

Drive System

The compact loader is powered by a robust 10 HP diesel engine.

Equipment

The loader comes standard with a bucket that has a rated capacity of 0.12 m³. It features two forward and two reverse gears and reaches a maximum speed of 6 km/h.

Technical Data & Performance

• Engine: Diesel engine, 10 HP
• Rated Speed: 3000 rpm
• Air Intake System: Naturally aspirated
• Emission: Euro 5
• Rated Load: 200 Kg
• Maximum Load: 300 Kg
• Maximum Climbing Power: 350KN
• Bucket Capacity: 0.12 m³
• Speed: 6 km/h
• Cycle Time: 9 seconds
• Working System Pressure: 17-21 bar
• Fuel Tank Capacity: 5 liters
• Operating Weight: 900 Kg
• Maximum Working Height: 2450 mm
• Bucket Pin Height: 1870 mm
• Maximum Horizontal Bucket Height: 1810 mm
• Vehicle Height: 1350 mm
• Overall Length without Attachments: 1450 mm
• Vehicle Width: 850 mm
• Overall Length with Standard Bucket: 2100 mm
• Maximum Unloading Angle: 34 degrees
• Dumping Height: 1510 mm
• Unloading Distance: 450 mm
• Bucket Bottom Tipping Angle: 27 degrees
• Maximum Bucket Tipping Angle: 114 degrees
• Track Width: 200 mm
• Maximum Gradient: 30 degrees
• Ground Clearance: 150 mm
• Rear Length: 280 mm
• Bucket Width: 900 mm

Extras

✔ Standard bucket (included)
✔ Various attachments available upon request
✔ High-quality and robust construction
✔ Easy handling
✔ Highly maneuverable
✔ Compact and versatile
✔ 4 hydraulic connections (2 inlets and 2 outlets)
✔ Third hydraulic circuit for attachments
✔ CE-certified according to the latest standards and regulations
