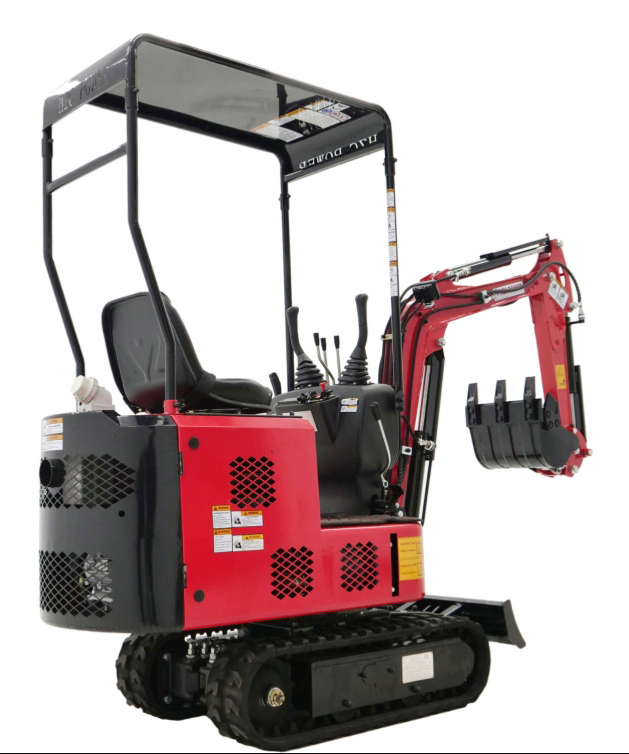

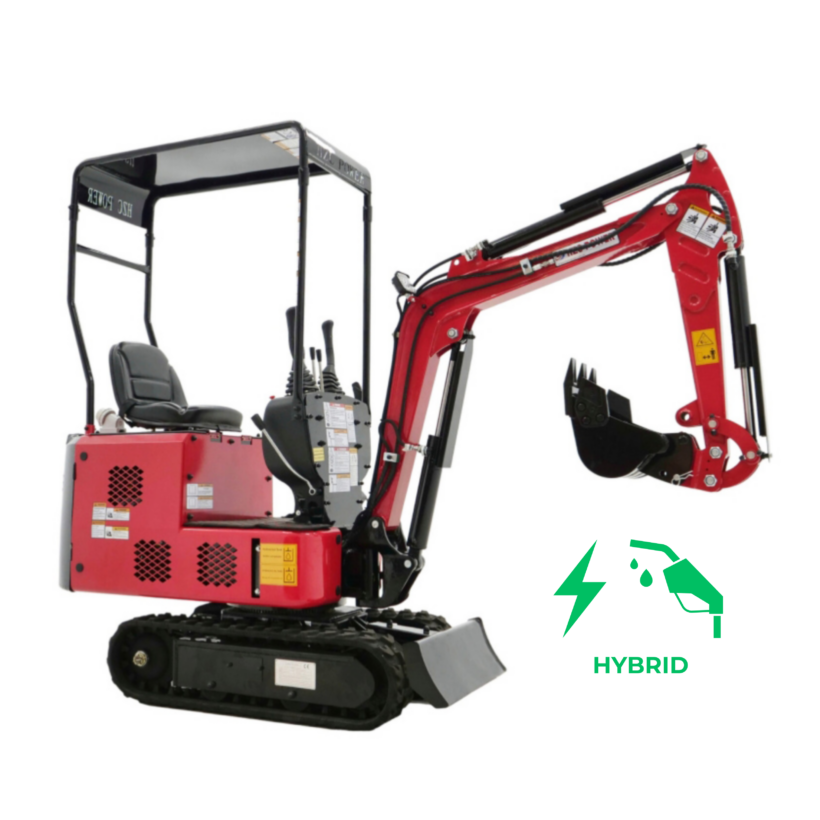

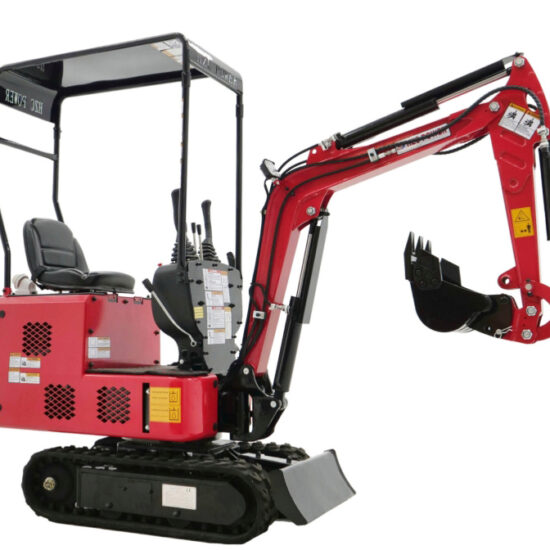

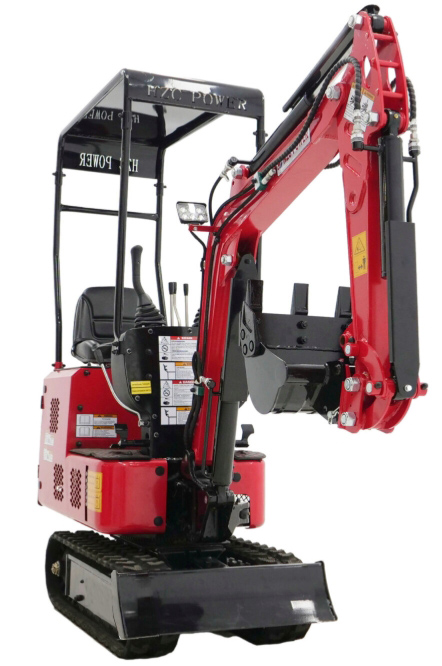

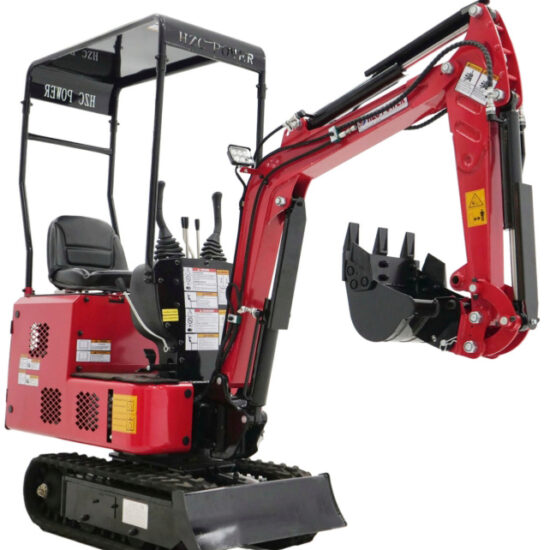

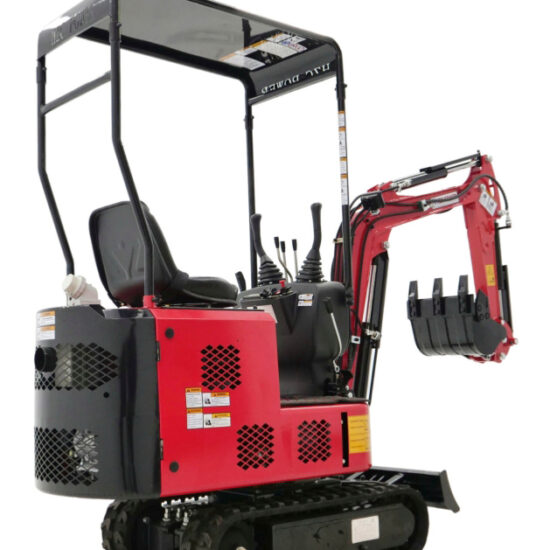

Electric (hybrid) mini excavator with additional petrol engine, chain drive, adjustable undercarriage & pivoting excavator arm (EBKB810K)
The EBKB810K is an electric mini excavator from HZC Power. With this mini excavator, you can also reach places that are difficult to access (narrow entrances and exits), as it was developed due to its narrow width of 680-880 mm. The chassis is width-adjustable and the mini excavator has an additional pivoting excavator arm. The mini excavator also has a petrol engine – as well as an electric motor – and can be operated individually as required. In other words, it is a hybrid mini excavator. If the electric motor is used with the mini excavator, it must be connected to a power cable.
The electric mini excavator is therefore particularly flexible both outdoors and with the electric motor – in well-ventilated rooms – indoors. Furthermore, the powerful mini excavator features our popular 120° articulation system, allowing even more flexible use in confined spaces.
Dimensions of the e-mini excavator
Thanks to its compact size, the — is very flexible and can fit on smaller construction sites. Thereby the dimensions of the excavator are 2400 mm * (680-880) mm * 2100 mm (LxWxH). For a firm stand of the mini-excavator provide a width adjustment (track width: 680mm-880mm) of the extendable wheels and additional supports. Excellent is this mini walking excavator for digging trenches and for removing turf in places difficult to access.
Electric mini excavator with petrol engine
The powerful all-rounder is powered by a Briggs&Stratton gasoline engine (10 hp, gasoline), so there is enough digging and lifting power for your project. The engine features a hydraulic oil cooler. Should you experience problems with the engine despite its high quality, Briggs&Stratton offers maintenance/repair service at qualified partner shops in many locations worldwide. With a digging depth of 1300 mm and a reach on the ground of 2300 mm make this excavator your perfect companion on your construction site.
Equipment of the crawler excavator
A quick coupler is installed as standard on the EBKB810K, so that a change can be carried out within a minute. This makes working with the small excavator even more efficient and economical.
Hydraulic attachments can still be connected to an additional control unit on the excavator arm. Hydraulic accessories, however, must be attached without the quick coupler. You can find detailed instructions on our YouTube channel or request the PDF version from our customer service to.
The seat can be rotated 360° and provides additional flexibility when excavating. The additionally adjustable seating position and easily accessible control levers further make using the mini excavator easier. A hydraulically lowerable dozer blade completes the offer for the mini excavator.
Scope of delivery of the excavator
As standard, the mini excavator comes with a mounted 375 mm excavator bucket delivered. In addition, you will also receive a 200 mm shovel for this excavator, a 610 mm trench shovel and a Subsoil rake. The quick coupler on the mini excavator makes it easier to change the different blades.
As a supplement, we also supply our popular Gripper for excavators (SH360) so that you can also easily grab and lift things. Additional hydraulic accessories such as stemmhammer can be connected to an additional integrated control unit or earth drill can be connected.
Offer for your mini excavator
At HZC Power we always pay attention to the highest quality, technically flawless workmanship and a robust construction. Our mini excavators are delivered to you fully assembled by a shipping company. We offer you a fixed price for shipping, which is automatically generated in the shopping cart (additional shipping information can be found ).
You are welcome to view our products at our headquarters after arrangement or pick them up free of charge.
If you have any further questions about the individual models, please feel free to contact our customer service. He will be happy to advise you further. Convince yourself of our offer and secure your mini excavator in the best quality at the best price at HZC Power.
Technical data
- Manufacturer: HZC Power GmbH
- Model: EBKB810K
- 1. Engine: Briggs&Stratton, 10 hp, petrol,
- 2. Motor: electric motor, 400V, 2.2 kW
- Cooling: Hydraulic oil cooler
- Max. Torque: 35 Nm
- Max. Speed: 2880 r/min
- Digging force: 5.5 kN
- Fuel tank capacity: 6.5 liters
- Electric starter: 12 volts
- Maximum climbing ability: 25°
- Maximum speed: 2 km/h
- Ground pressure: 0.35 kgf/cm²
- Dimensions of tracked chassis: 1090 x 180 x 320 mm (LxWxH)
- Oil tank capacity: 6.5 liters (HLP46)
- Pan radius: 360°
- Swivel speed: 13 r/min
- Hydraulic pump: double gear pump
- Working pressure: 160 bar
- Maximum pressure: 210 bar
- Hydraulic flow: 30 liters per minute
- Digging depth: 1300 mm
- Overloading height: 2140 mm
- Ground reach: 1300 mm
- Dimensions: 2200 x (680-880) x 2200mm
- Product/Shipping Weight: 810 kg
- Special features: articulation (120°), hydraulically adjustable chassis
Others
Complete set:
- Includes 20 cm, 37 cm shovel and 60 cm shovel
- Fang
- Wood grabber
Exclusive accessories for our mini excavators
In addition to our standard shovel set, we also have a number of other accessories for our mini excavators in our range. Of course, you can also buy the shovel set or individual shovels from us.
In addition, we also have a trench shovel with a width of 610 mm and a trench shovel with a width of 810 mm in our range and a practical rake (RE5).
Our mini excavators also have an additional control unit integrated into the excavator arm. Hydraulic devices can be connected via this control unit. We currently have two earth drills (HEB200 and HEB300) as well as a practical caulking hammer (HSH5000).
In addition to attachments, we also stock a charger for the mini excavator batteries. The smart charger (SLM10) is not only suitable for all of our excavators, but also for cars, boats and much more.
Shipping details / delivery note
Our excavators are delivered fully assembled and ready for operation. You will
delivered using a small truck including a lifting platform so that no own aids such as ramps are required. Hydraulic oil and engine oil have already been filled in, and the excavator is also refueled directly. Before using it for the first time, please check the excavator completely and tighten all existing screws again.
