Stump grinder/tree stump grinder/root grinder with petrol engine (BF100)

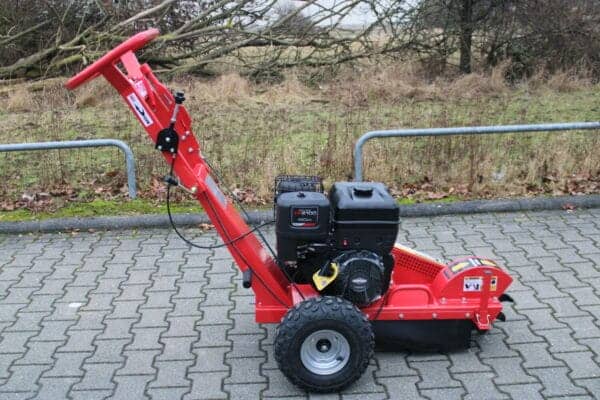

The BF100 self-propelled root tiller is a forestry implement. The stump grinder is used to remove tree stumps after tree felling, even in places that are difficult to access. The BF100 is a single-axle cutter with a rigid arm, so that it is guided manually and can therefore be used particularly flexibly. By moving the milling head evenly, the stump is precisely milled away and the tree stumps are reduced to woodchips.
Designation
No other machine has as many names as the stump grinder. In northern Germany, for example, this gardening and landscaping machine is also known as a stump grinder. We are also familiar with the terms tree grinder, rootstock grinder, root grinder, stubble grinder and tree root grinder. Have we forgotten a name? But no matter what the BF100 is called, it serves the same purpose.
Drive
The stump grinder is powered by a 13.5 hp Briggs&Stratton petrol engine. Briggs&Stratton offers a worldwide maintenance/repair service for the powerful engine at qualified partner workshops. The 12 teeth of the BF100 are characterised by hardness and durability. The diameter of the cutting edge is 260 mm and has a width of 53 mm.
Equipament
Above ground, the root tiller can handle a stump height of 600 mm. Below ground, root tiller manages a depth of 235 mm. The one-sided drum brake facilitates the work enormously, as this allows a crescent-shaped movement. This shape guarantees efficiency when removing the stump. The own weight of only 110 kg does not require any own effort during the work. Thanks to the handy handle and the 170/45-6 pneumatic tyres, transport is also no problem at all: the space-saving stump grinder can also be transported on a trailer without any problem.
Technical Data
Manufacturer: HZC Power
Model: BF100
Engine: Briggs&Stratton, 13.5 hp, petrol, XR2100, 420 cc
Tiller diameter: 260 mm
Tiller width: 53 mm
Tiller teeth: 12 pcs.
Tyre size: 170/45-6
Weight: 110 kg
Brake: Drum brake
Maximum depth: 235 mm
Maximum height: 600 mm
Mike Jantzen –
Since no tree grows more!
The tiller keeps what it promises, easy handling and the trick with the drum brake works great!
Good that I rebuild the whole garden, are a few trees that had to go, purchase was worth it!
F. Deters –
Cool
Worked great, nice staff
Jochen Braun –
Runs great!
Super, everything works really well and is fun!
Have the machine now a few months and can say absolutely nothing against it.
I have now times changed the knives, so it can go on soon, but at work, no wonder.
Am very satisfied!
