30 t horizontal log splitter with petrol engine & log lifter (HS30290)

(2 customer reviews)

2.290.00

Includes 19% VAT
Delivery Time: approx. 6-12 workdays

The Christmas offer of 15% applies to this product. Only for a short time.

  • Briggs & Stratton petrol engine (6.5 hp)
  • Horizontal work
  • 30 t splitting force
  • Wood diameter: max. 50cm
  • Max. Gap length: 60cm
  • Oil filter for a longer service life
  • Log lifter with a load capacity of up to 80 kg
  • Trailer Hitch & Holding frame



Maintenance & Repair for a long service life:
Our all-round service is available for this product.
All spare parts are always in stock and will be installed at short notice.

In stock

+ -
Select delivery location


30 t horizontal log splitter with petrol engine & Trunk lifter (HS30290)

Firewood for the winter – everyone with a fireplace, stove heating or fireplace knows the problem: finished firewood is expensive and the work with axe, hammer and splitting wedge is incredibly exhausting and sweaty. For this we have the solution, because our HZC Power log splitters with gasoline engine facilitate your work.

The HS30290 log splitter from HZC Power has a splitting force of up to 30 tonnes and splits material up to 600 mm long. The log-splitter is also equipped with a log-lifter, which makes the work even easier. An integrated frame ensures that logs do not fall off the splitter. The two-hand operation ensures the safety of your hands.

Wood splitter with petrol engine

The horizontal log splitter is equipped with a reliable Briggs & Stratton petrol engine. The engine is equipped with 12.88 Nm gross torque and 208 cc. An oil filter for the hydraulic oil ensures an even longer service life.

The maintenance/repair service set up by Briggs&Stratton in selected partner workshops is easy to help should problems arise with the powerful engine.

Lying log splitters

With a horizontal log splitter, the wood is placed on a horizontal splitting table. The splitting material is then pressed horizontally by the pressure plate into the pointed splitting wedge and thus divided. The splitting table on the HS30290 can be raised and lowered hydraulically as required. Both levers (two-handed operation) must be operated for the splitting process, but the splitting wedge moves back automatically when the lever is released.

The horizontal wood splitter has a splitting force of 30 t and splits material up to a length of 600 mm. The length of the split material is usually very suitable for the fireplace or a place for firewood and can of course be reduced if necessary.

The splitter has a trailer hitch so it can be easily moved around the yard. However, the HS30290 is not street legal. Due to the handy dimensions of 230 x 101 x 119.5-174.3 cm (LxWxH), the log splitter can also be easily transported on a trailer.

Offer for your log splitter

At HZC Power we always pay attention to the highest quality, technically flawless workmanship and a robust construction. Our wood splitters are delivered partially assembled by a shipping company. The hydraulic oil may need to be topped up - we supply this! We offer you a fixed price for shipping, which is automatically generated in the shopping cart (additional shipping information can be found here).

You are welcome to view our products at our headquarters after arrangement or pick them up free of charge.

If you have any further questions about the individual models, please feel free to contact our customer service. He will be happy to advise you further. Convince yourself of our offer and secure your log splitter in the best quality at the best price at HZC Power.

Technical data

  • Model: HS30290
  • Manufacturer: HZC Power
  • Splitting force: 30 t
  • Gap length: max. 600 mm
  • Cycle: 15 s
  • Hydraulic oil capacity: 14 l (HLP46)
  • Product weight: 290 kg
  • Shipping weight: 325 kg
  • Product dimensions: 230x101x119.5-174.3 cm (LxWxH)
  • Special features: trunk lifter (up to 80 kg), trailer hitch
  • Working positions: Horizontal
  • Operation: 2-hand

Engine

  • Engine: Briggs & Stratton 6.5 HP petrol engine, XR950
  • Model number: 130G
  • Engine technology: single cylinder, 4-stroke, air-cooled, OHV (overhead valves)
  • Displacement: 208 cc
  • Cylinder: Cylinder with cast iron sleeve
  • Bore: 68.3 mm
  • Clock: 55.9 mm
  • Fuel tank volume: 3.1 l
  • Oil capacity: 0.6 l
  • Weight: 16 kg
  • Dimensions (WxLxH): 321x376x346 mm

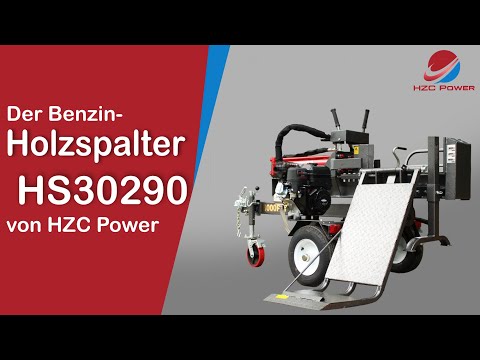

Log splitter videos

30 t liegend Holzspalter mit Benzinmotor & Stammheber (HS30290) von HZC Power

Wood splitter assembly video

Montage von einem 40 t liegend Holzspalter mit Benzinmotor & Stammheber (HS40335) von HZC Power

Around the topic of log splitters

Split crosses for log splitters

With the help of a splitting cross, the wood is not only halved, but directly divided into four. This way you can reach the desired size of sawn wood pieces for one or two fireplaces more quickly.

Splitting power of the wood splitting machine

Also take a look at our HZC Power Magazine, where you can learn more about wood splitters and find more tips and tricks. Discover e.g. B. about the benefits of purchasing one of our log splitters.

Why buy a log splitter?

Also take a look at our HZC Power Magazine, where you can learn more about wood splitters and more tips & Tricks. Discover e.g. B. about the benefits of purchasing one of our log splitters.

Shipping details/delivery note

Our log splitters are delivered to you well packaged and disassembled. You should allow approx. 1-2 hours for the final assembly.

You will receive the hydraulic oil included. You would have to fill this in yourself after final assembly. However, you would have to get the engine oil yourself in advance and fill it up after final assembly (approx. 0.6-1.1 liters). For this we recommend Briggs&Stratton 4-Stoken Engine Oil SAE30.

The assembly can be carried out by anyone. You don't need any prior knowledge or technical knowledge. It's best to get help with this. Under this Link you can see a video on how best to assemble the log splitter step by step.

It is also possible to receive the log splitter completely pre-assembled. This would result in additional costs. You can order our additional service directly from the shop or simply speak to our customer service.

A splitting cross is also included in the scope of delivery of the log splitter. The splitting cross may not be used within the European Union when using the log splitter. The new EU standard EN 609:2017 prohibits the use of multiple splitting wedges and splitting crosses for log splitters.
Any use of the splitting cross is at your own risk and responsibility.
