Mobile loading ramp / Mobile dock ramp with 10 tons load (MLRD10)

Mobile loading ramp / Mobile dock ramp with 10 tons load (MLRD10)

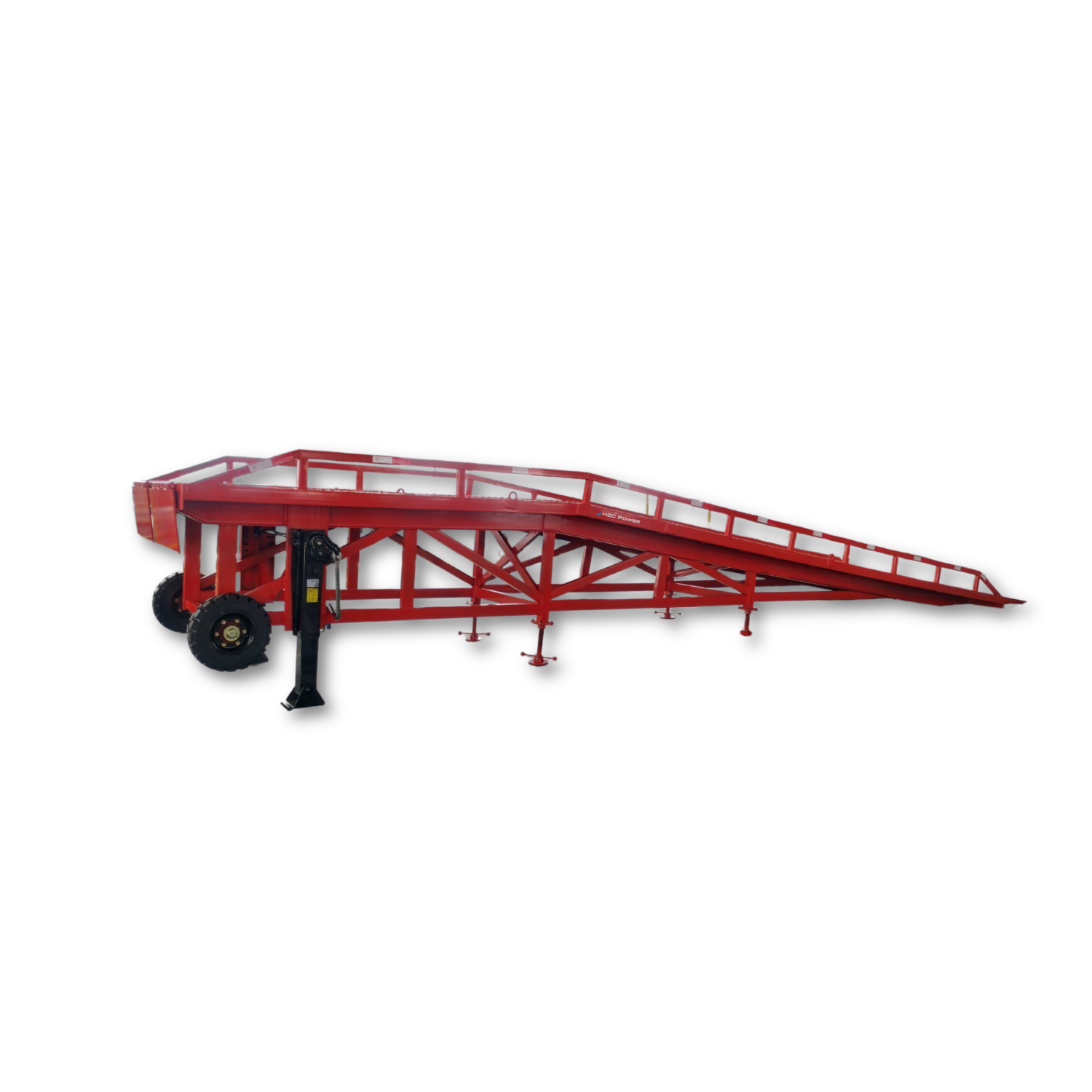

Our MLRD10 mobile loading ramp/mobile dock ramp is the ideal solution for you to efficiently load and unload trucks or containers using a forklift truck without a fixed loading infrastructure. Whether outdoors, on changing construction sites or in mobile working environments – it offers a reliable loading option.

Sturdy construction for heavy loads

A manually operated hydraulic pump makes it possible to adjust the height of the ramp without much effort, and this can be done by just one person. This allows the ramp to be quickly and easily adjusted to different truck and container heights with a lifting range of 1,100 – 1,800 mm. This enables forklift trucks to enter seamlessly, resulting in faster goods handling and thus saving time and costs.
With a load capacity of up to 10,000 kg and noble dimensions of 2,100 mm x 11,300 mm x 1,100 mm, this ramp is equipped for the heaviest tasks. The stable material ensures that the ramp is not deformed in any way. Thanks to the integrated towing bracket, the 2,600 kg mobile access ramp can be effortlessly transported to the next location on the site using a tractor unit.

Security features for smooth processes

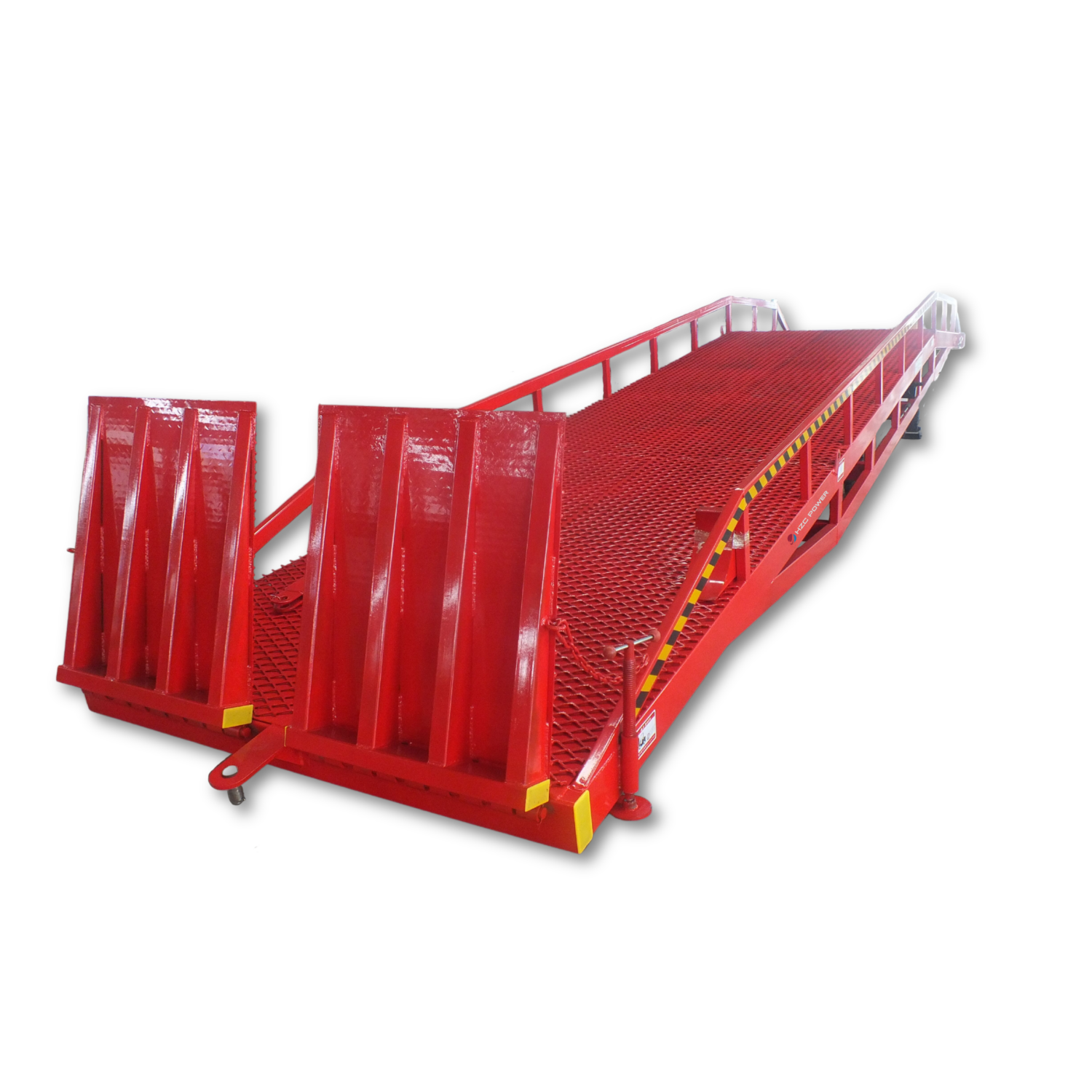

The permanently mounted safety chains and robust supports as well as brake blocks on the ramp ensure safe positioning even when fully loaded. The non-slip surface mesh structure ensures optimum grip even in adverse weather conditions such as rain and snow. An integrated railing supports safe entry and prevents accidents caused by falling or slipping.
With our MLRD10 mobile loading ramp, you not only increase your throughput, but also ensure safe and efficient operations at all times.
Please inform yourself about the applicable national regulations in the country of use before commissioning. The commissioning company is responsible for commissioning and also for the appropriate personnel for use.

Stabile Konstruktion für schwere Lasten

A manually operated hydraulic pump makes it possible to adjust the height of the ramp without much effort, and this can be done by just one person. This allows the ramp to be quickly and easily adjusted to different truck and container heights with a lifting range of 1,100 – 1,800 mm. This enables forklift trucks to enter seamlessly, resulting in faster goods handling and thus saving time and costs.
With a load capacity of up to 10,000 kg and noble dimensions of 2,100 mm x 11,300 mm x 1,100 mm, this ramp is equipped for the heaviest tasks. The stable material ensures that the ramp is not deformed in any way. Thanks to the integrated towing bracket, the 2,600 kg mobile access ramp can be effortlessly transported to the next location on the site using a tractor unit.

Details:

• Manufacturer: HZC Power GmbH
• Model: MLRD10
• Max. Load: 10,000 kg
• Dead weight: 2,600 kg
• Dimensions: 11,300 mm x 2,100 mm x 1,100 mm
• Height adjustment: Via manually operated hydraulic pump
• Height adjustment range: Height adjustable from 1,100 mm – 1,800 mm
• Railing height: 200 mm (40*60*3mm rectangular tube)
• Main structure: 160*80*5 rectangular tube, plus center support beam
• Subframe structure: 100*50*4 rectangular tube
• Hydraulic cylinder: Φ80*Φ50 (2 pcs.)
• Hydraulic hose: 32Pma high pressure oil line
• Mobile rubber wheels: 600-9 solid rubber tires
• Bridge and container: The bridge body is welded with hooks and fastened with steel chains
